The instruction screenshot is created on F7S platform. But path and method still applied to models: F3,F3G, F3D, F3S,F3SN, F3SG, F5D, F5G, F7SN,F7SG

Mitsubishi Fuso Truck and Bus DPF forced regen path  (Sample only)

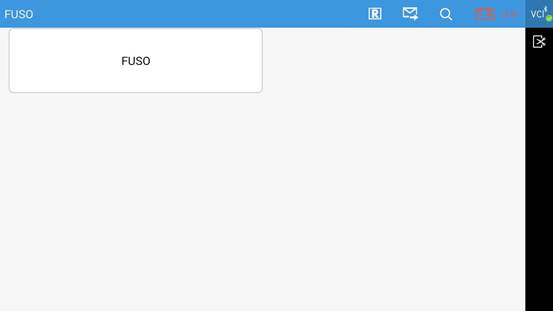

  1. Select Heavy duty and Fuso

1594621682336

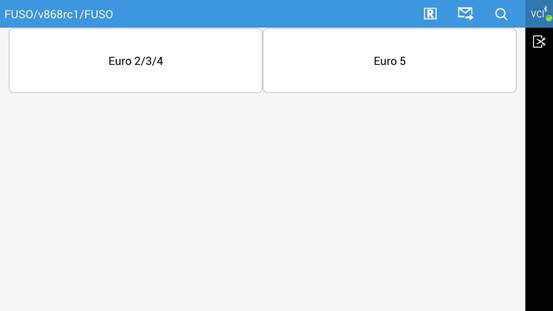

  1. Select Euro 5

1594621686599

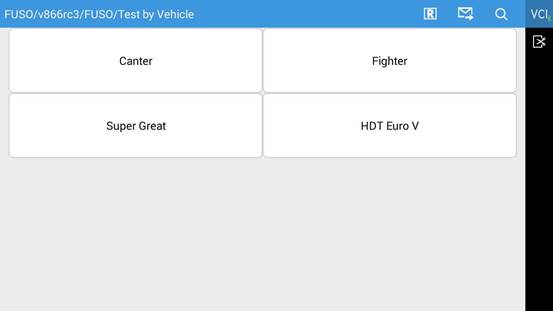

  1. Select Canter

1582765395850

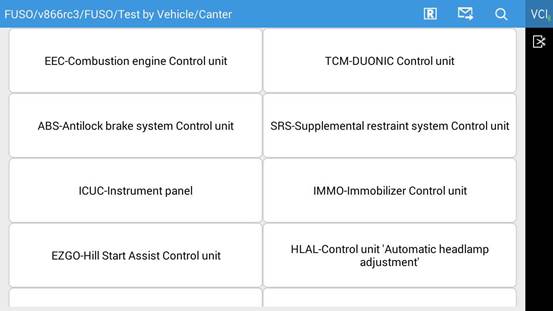

  1. Select EEC-Combustion engine Control unit

1582765402177

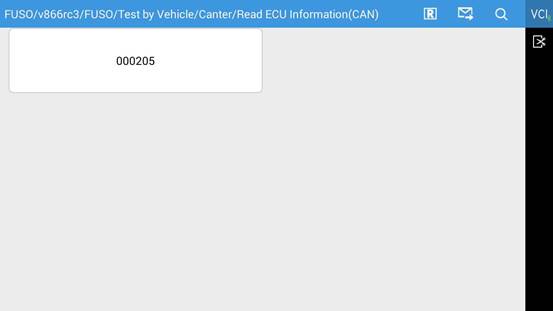

  1. Select (Diagnosis identifier) . You might see difference vehicle identifier, 000205 is example

1582765409183

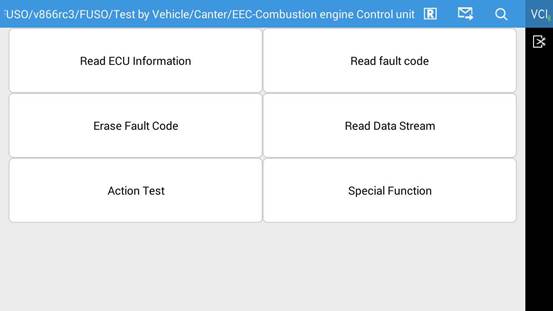

  1. Actuation Test

1582765413294

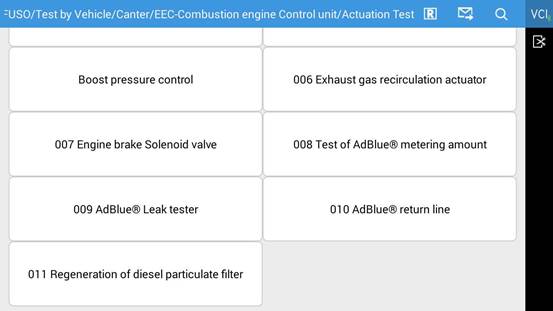

  1. Select 011 Regeneration of diesel particulate filter

1582765419121

  1. DPF forced regen conditions:

Engine start

Engine speed approx. 650rpm

The coolant temperature must be more than 60 °C/140 °F

Fuel temperature Less than 70 °C/158 °F

Battery voltage more than 5 V

Status of accelerator pedal: Less than 90 %

Exhaust temperature upstream of diesel particulate filter Less than 600 °C/1112 °F

Exhaust temperature upstream of SCR catalytic converter Less than 600 °C/1112 °F

Soot content of diesel particulate filter Less than 330g

Exhaust temperature upstream of diesel particulate filter Less than 700 °C/1292 °F

The component 'Temperature of component' Oxidation catalytic converter' does not reach the maximum temperature value of 600 °C/1112 °F

Clutch not opened

The transmission is in neutral

Brake pedal not Operated

Vehicle AT Standstill

Operating condition of combustion engine: Normal

No error code for component 'DPF' is present



  1. If all the conditions meet, you just click YES to do regen.

1582765435226

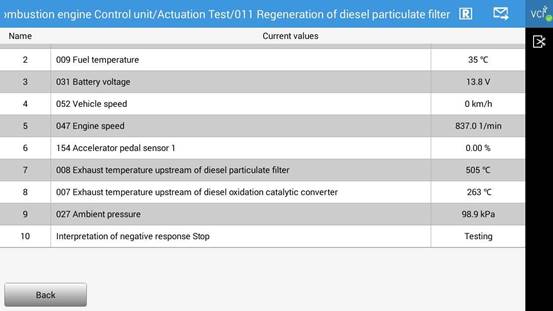

  1. If the regen starts, live data "Interpretation of negative response Stop" is showing "Testing"

  1. If  "Interpretation of negative response Stop" is NOT showing  "Testing", you need to check all conditions and repeat.

The test will stop and idle speed will return to normal when the particulate filter is sufficiently cleaned of soot. Press “stop” to exit the process early if need be.
